BigLeaf

BigLeaf

$1,800

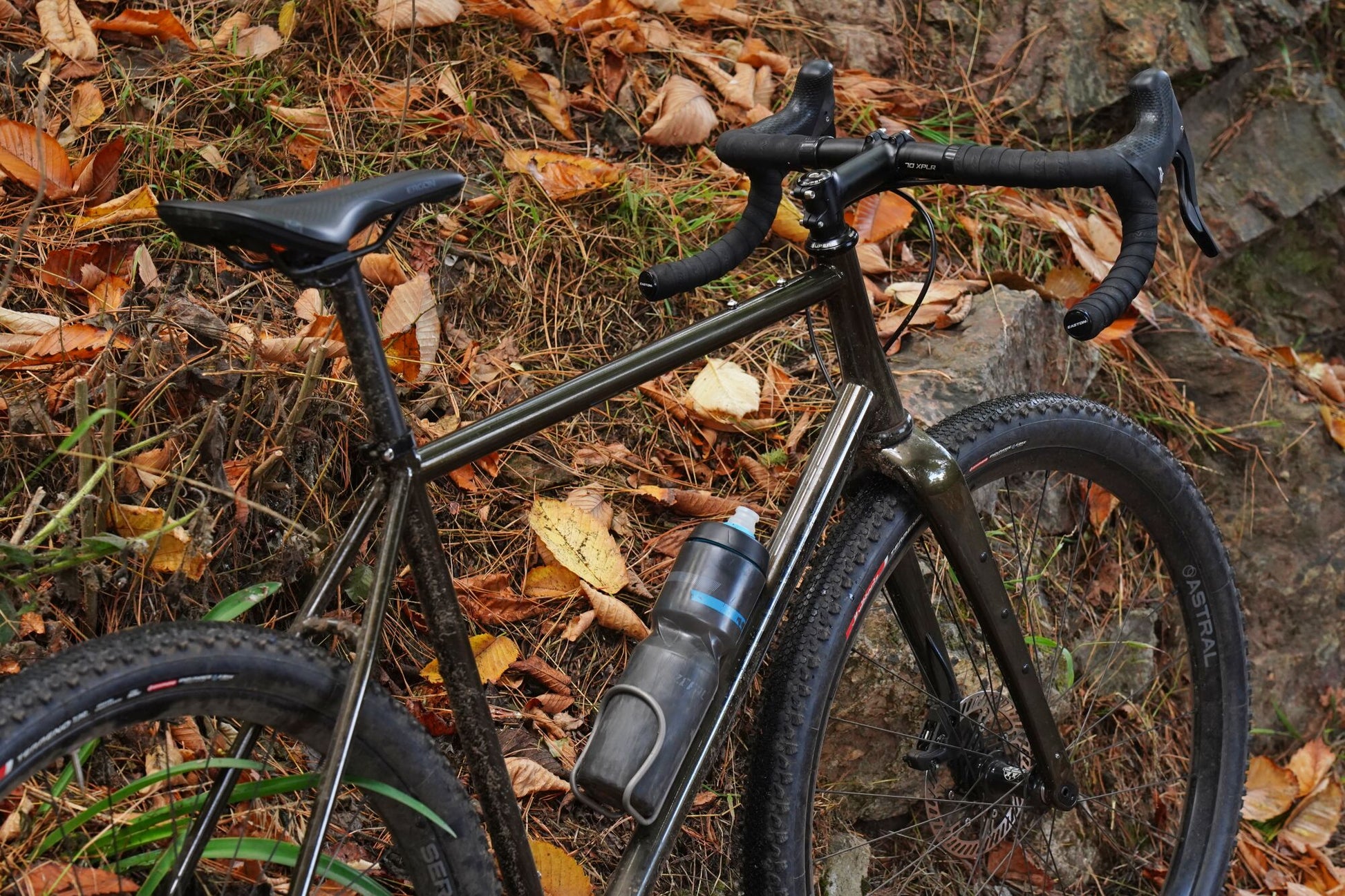

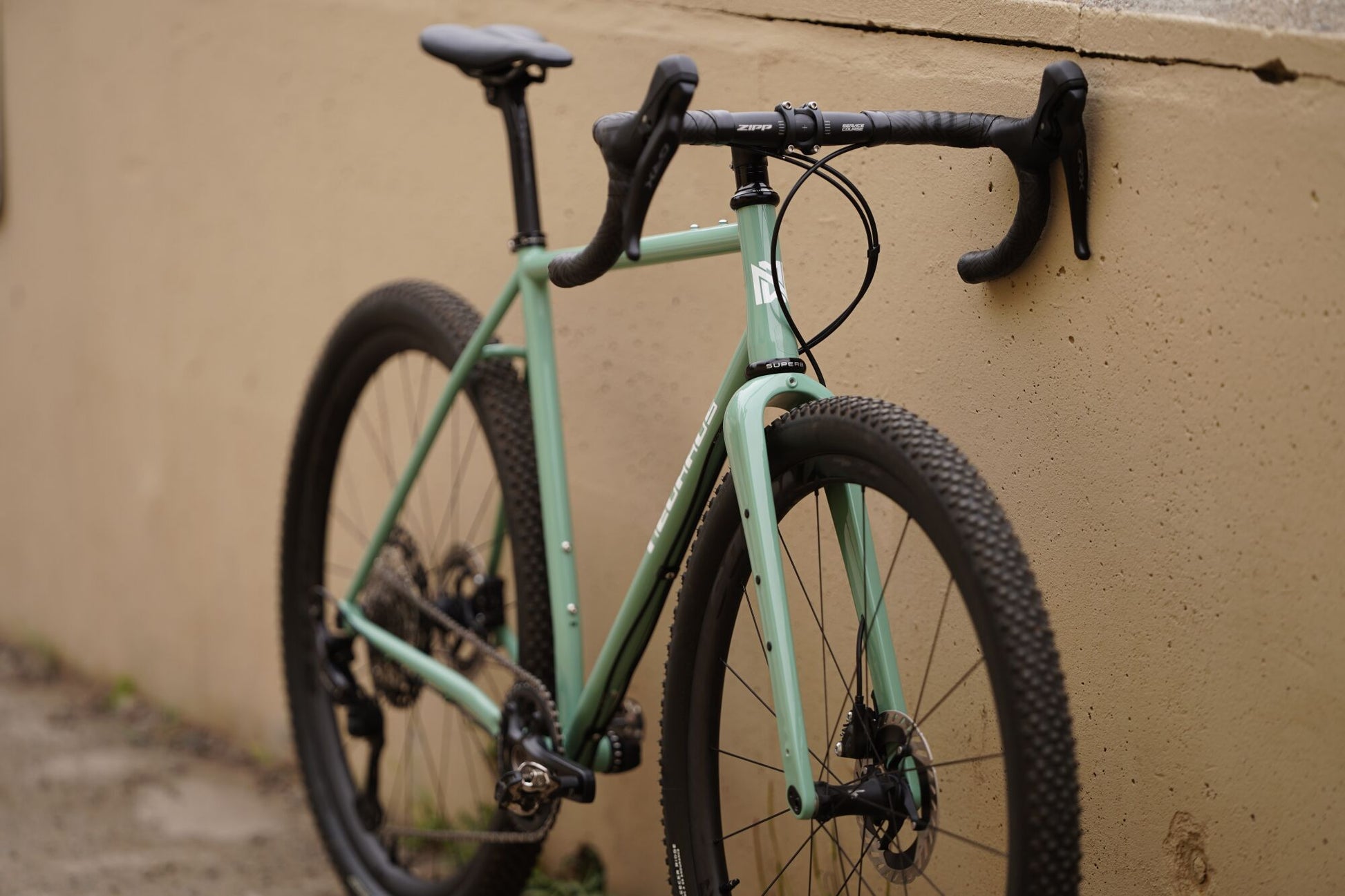

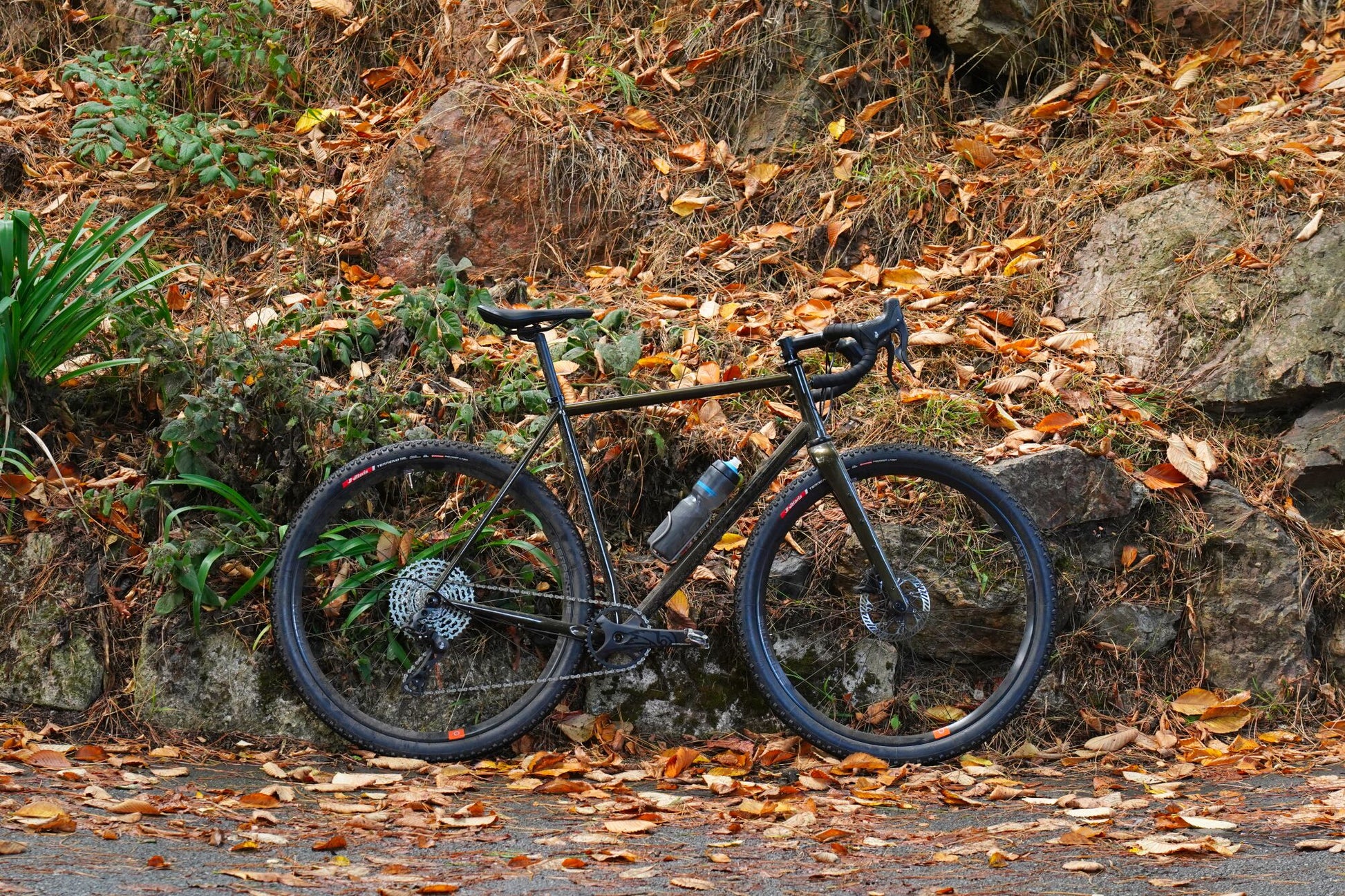

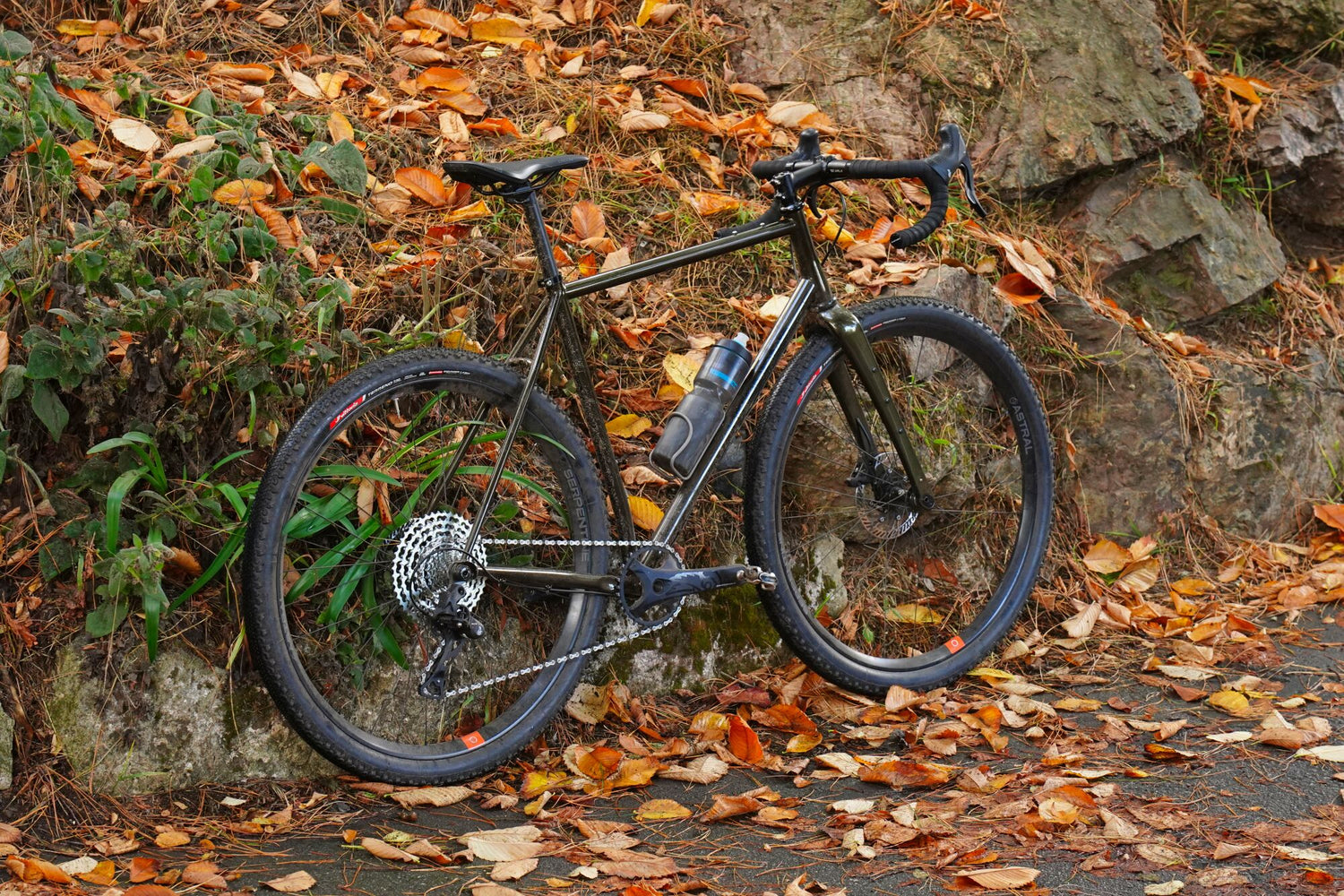

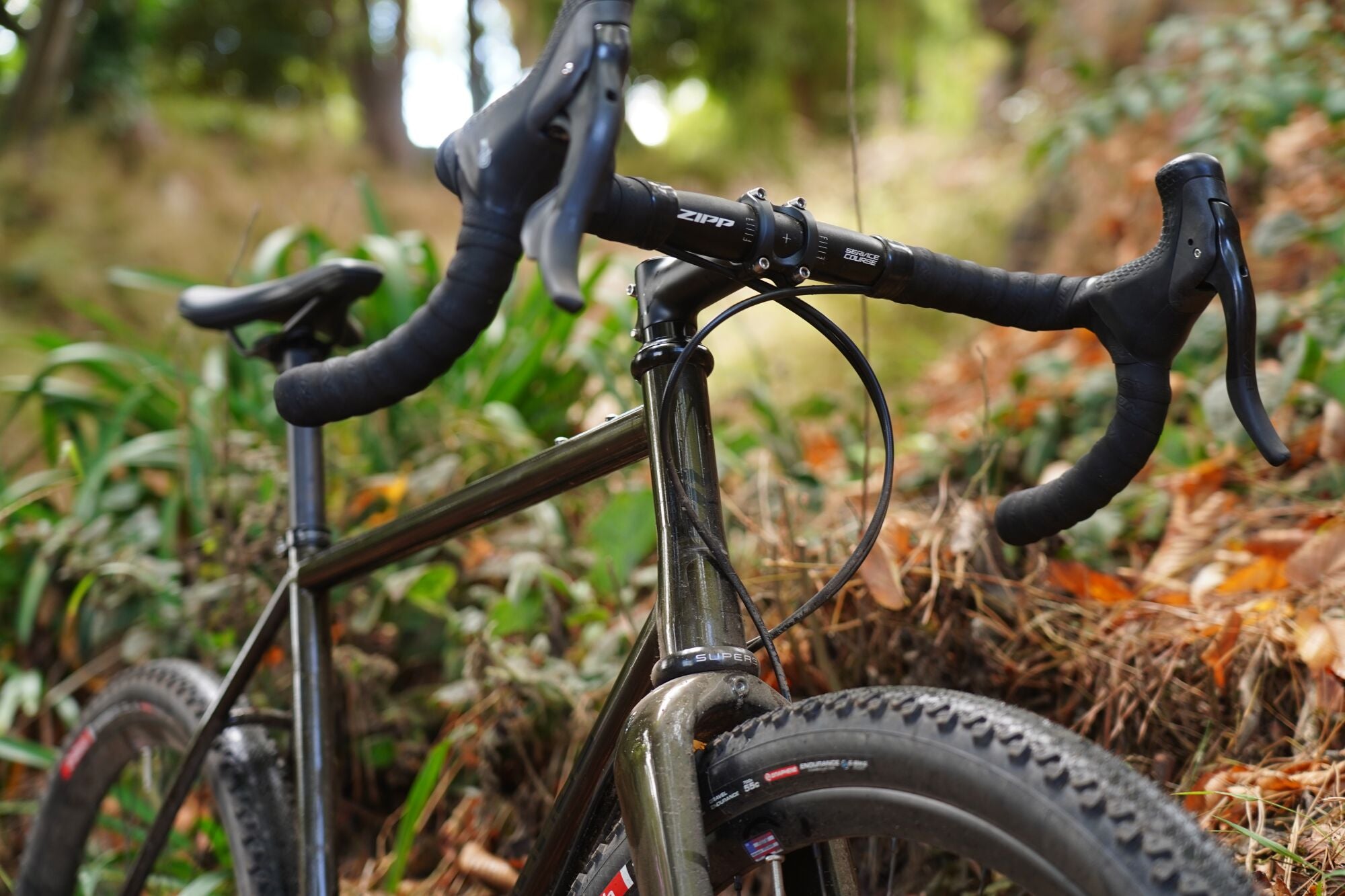

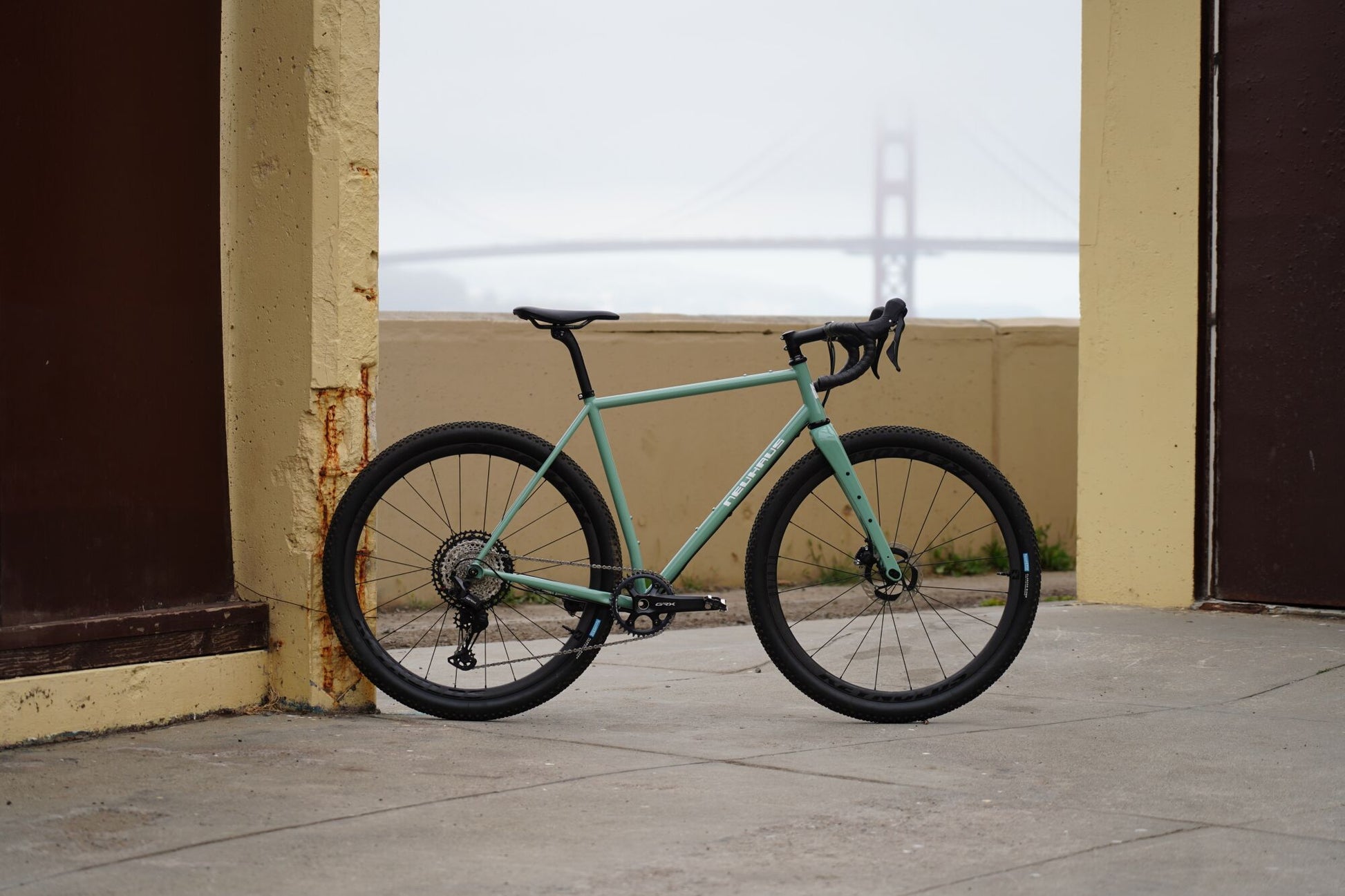

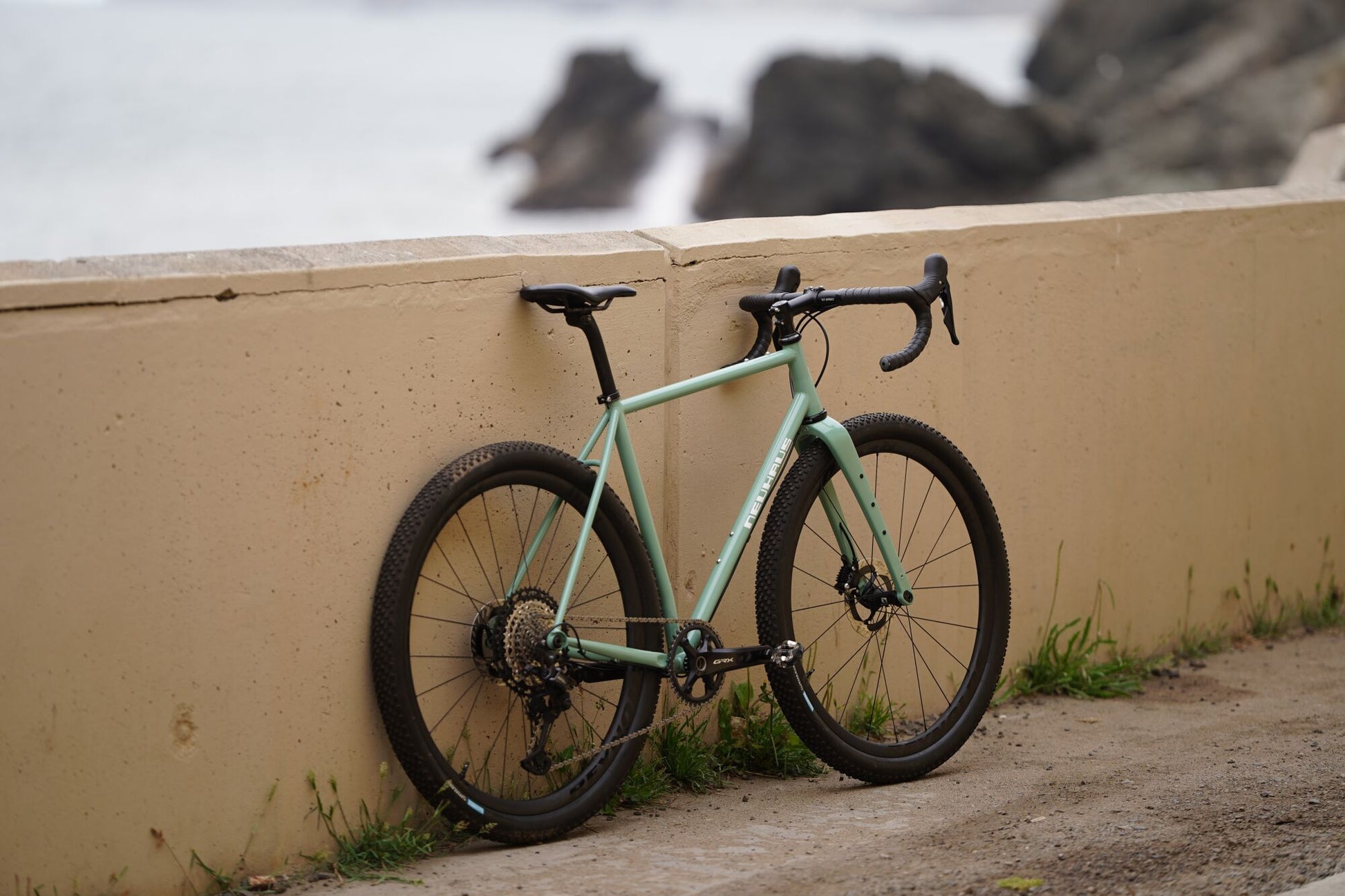

The mountain biker's steel gravel bike. Designed around 700x50, clears up to 700x55.

Shipping: 2-3 days

Please allow 1 week to ship completes

View full details
  • Why we Designed it:

    We wanted to create a gravel bike we would ride and own. Gravel bikes are all over the place these days: huge tires, suspension, storage, aero, integrated, etc... In our opinion, those ruin the very thing that makes the gravel bike great: its simplicity. With BigLeaf, we designed it for a relaxed fit, clean lines, and nimble handling. No gimmicks, just a simple, reliable steel gravel bike.

  • Specs:

    Drivetrain: 1x Gravel Drivetrains, UDH

    Bottles: 2x main triangle, 1x below DT

    Wheelsize: 700c

    Tire Clearance: 55mm

    Rear Axle: 142x12

    Front Axle: 100x12

    Bottom Bracket: Threaded BSA 68mm

    Headtube: EC34/44 Tapered

    Seatpost Diameter: 27.2mm

  • Specs

    • Short 425mm chainstays
    • 700x55 max clearance
    • Deep 80mm BB drop
    • Quad butted Heat Treated 4130 Steel
  • Customizability

    Customizable build kits and parts. See build kits

  • Sizing

    Five sizes fit riders from 5’4”–6’3”. See size chart

  • Origin

    Made in small batches in the best Taiwanese factories. Learn more

Size Chart

For most riders, we recommend choosing the size that corresponds to your height.

52cm
5'4–5'7
54cm
5'7–5'9
56cm
5'9–5'11
58cm
5'11–6'1
60cm
6'1–6'3

Geometry

The Big Leaf features a well-balanced geometry: 71-71.5° HTA, tall stack, moderate wheelbase, and designed around a 70mm stem. This gives the bike a good balance of quick handling and agility while maintaining stability on road and gravel surfaces.

Size
52cm
54cm
56cm
58cm
60cm
Stack
562
572
593
612
631
Reach
377
382
390
394
402
Eff. Top Tube
542
548
562
572
585
Seat Tube Length
490
510
540
560
580
Seat Tube Angle
73.9
73.9
73.9
73.8
73.8
Head Tube Angle
71
71
71.5
71.5
71.5
Wheel Base
1015
1022
1032
1042
1056
Chainstay
425
425
425
425
425
BB Drop
80
80
80
80
80

Build Kits

Shimano GRX 610 1x

Fork: Color Matched Carbon (Included)

Wheels: Shimano WH-RX180-700c, Microspline

Tires: Vittoria Terreno T30 Gravel Endurance

Bottom bracket: Shimano BBR60 Bottom Bracket

Cranks: Shimano GRX FC-RX610-1

Chainring: Included

Headset: Superb headset

Stem: Easton EA50 Stem

Handlebars: Easton EA50 AX

Bar tape: Easton Pinline Foam Tape

Seatpost: Easton EA50 Post

Hoods: Shimano GRX ST-RX610

Rear Derailleur: Shimano GRX RD-RX822

Cassette: Shimano CS-M7100 SLX CASSETTE - 12SPD

Chain: Shimano CN-M7100 CHAIN, SLX, HG 12-SPEED

Brake rotors: Shimano RT-CL800 Centerlock Disc Brake Rotor - 160mm

Saddle: WTB Gravelier

*Price of the build kit includes installation of all parts. Your bike will be shipped / delivered to you ready to ride with some minor assembly.

*Parts subject to change without notice.

SRAM Force XPLR AXS 13sp - 1x

Fork: Color Matched Carbon

Groupset: SRAM Force XPLR AXS 1x

Cranks: Force XPLR

Rear Derailleur: Force AXS XPLR RD

Casette: Force XG-1371 XPLR 10-46, 13sp

Chain: Force E1 flattop chain

Wheels: Stan's Crest MK4

Tires: Vittoria Terreno T30 Gravel Endurance (front and back)

Headset: Superb

Stem: PNW Coast Stem

Handlebars: PNW Coast Handlebar Gen 2

Seat post: Easton EA70

Rotors: SRAM HS2 rotor 6-bolt 160mm (front and back)

Saddle: WTB Gravelier

*Price of the build kit includes installation of all parts. Your bike will be shipped / delivered to you ready to ride with some minor assembly.

*Parts subject to change without notice.

Specs

Drivetrain: 1x Gravel Drivetrains, UDH

Bottles: 2x main triangle, 1x below DT

Wheelsize: 700c

Tire Clearance: 55mm

Rear Axle: 142x12

Front Axle: 100x12

Bottom Bracket: Threaded BSA 68mm

Headtube: EC34/44 Tapered

Seatpost Diameter: 27.2mm

Ride Quality

The magic of steel is its springy, lively ride quality. We worked closely with our manufacturing partners to ensure that the Big Leaf maintains the ride quality our custom frames are known for.

  • Quad butted, heat treated, chromoly tubing
  • Optimized butt lengths
  • Size-specific tube sizes

Thoughtful Features

  • Two bottles in every size
  • Easy-to-maintain external cable routing with reusable metal clips
  • Threaded bottom bracket for hassle-free maintenance
  • Fixed dropouts for a clean aesthetic
  • Room for 700x55c tires for confidence on any terrain
Neuhaus Metalworks Factory

Core Collection

Our Core Collection features the best designs from the best manufacturers. These bikes are produced in very small batches. Trickling down our knowledge from building and testing our custom bikes allows us to make high-end metal bikes more accessible.
