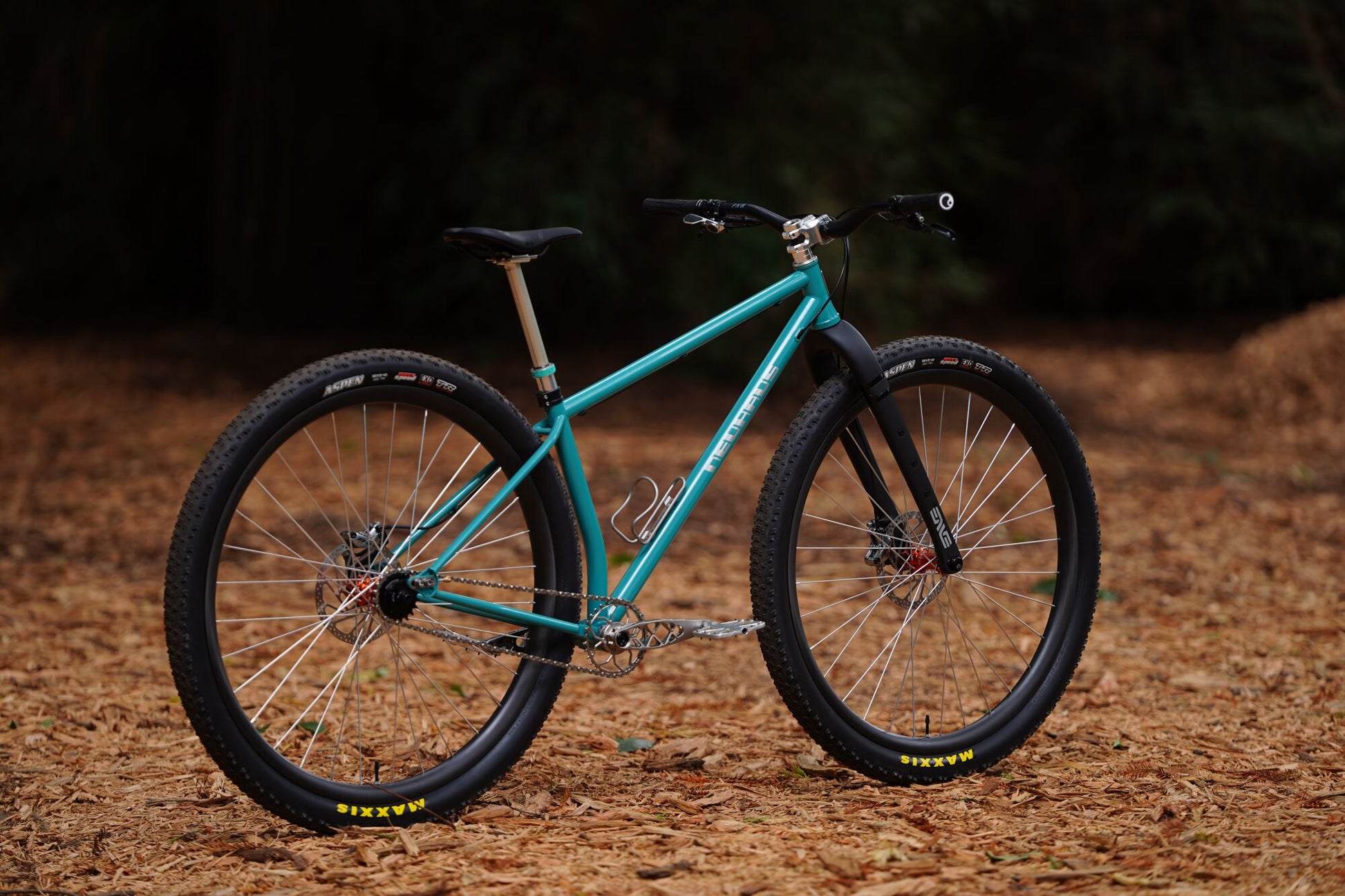

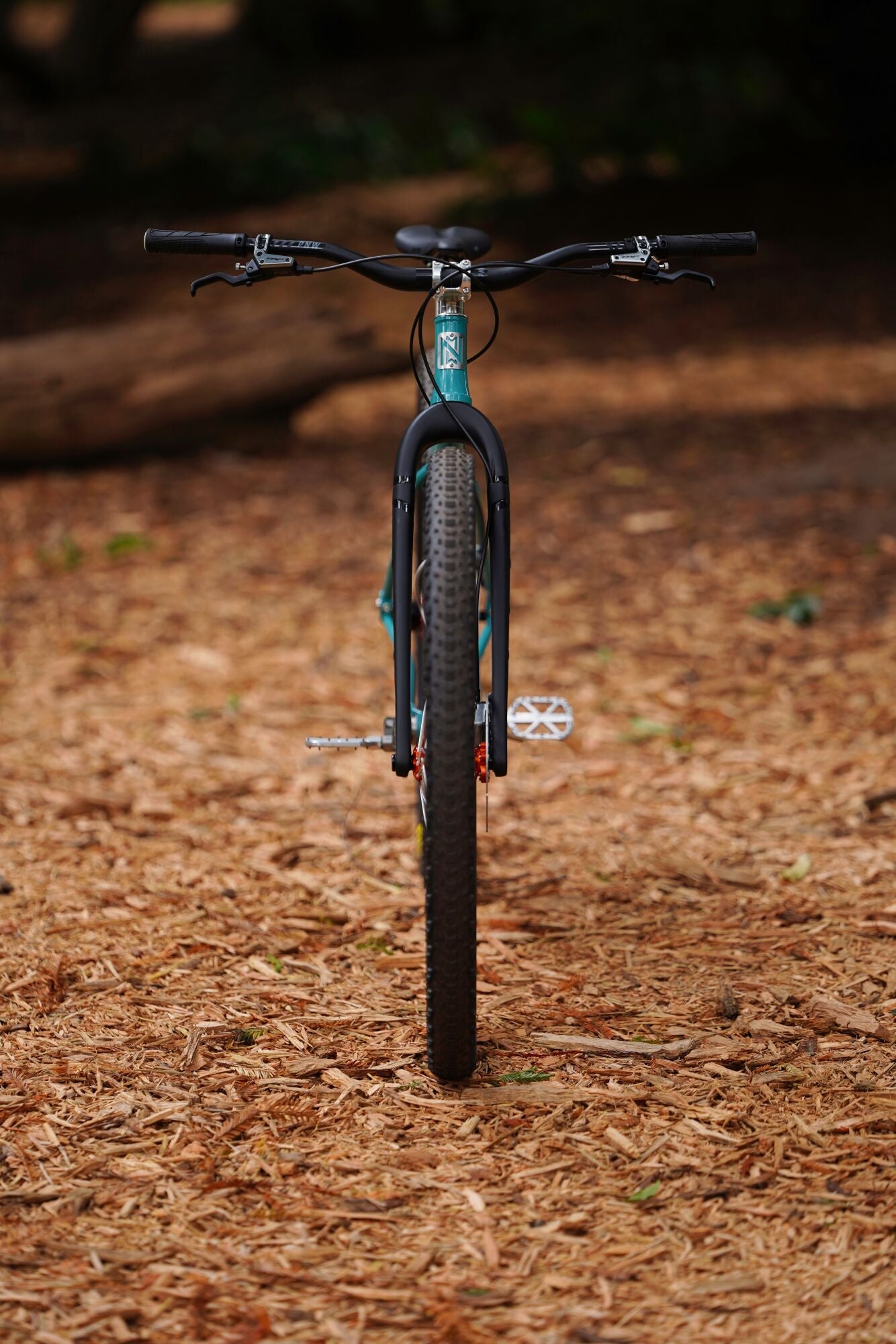

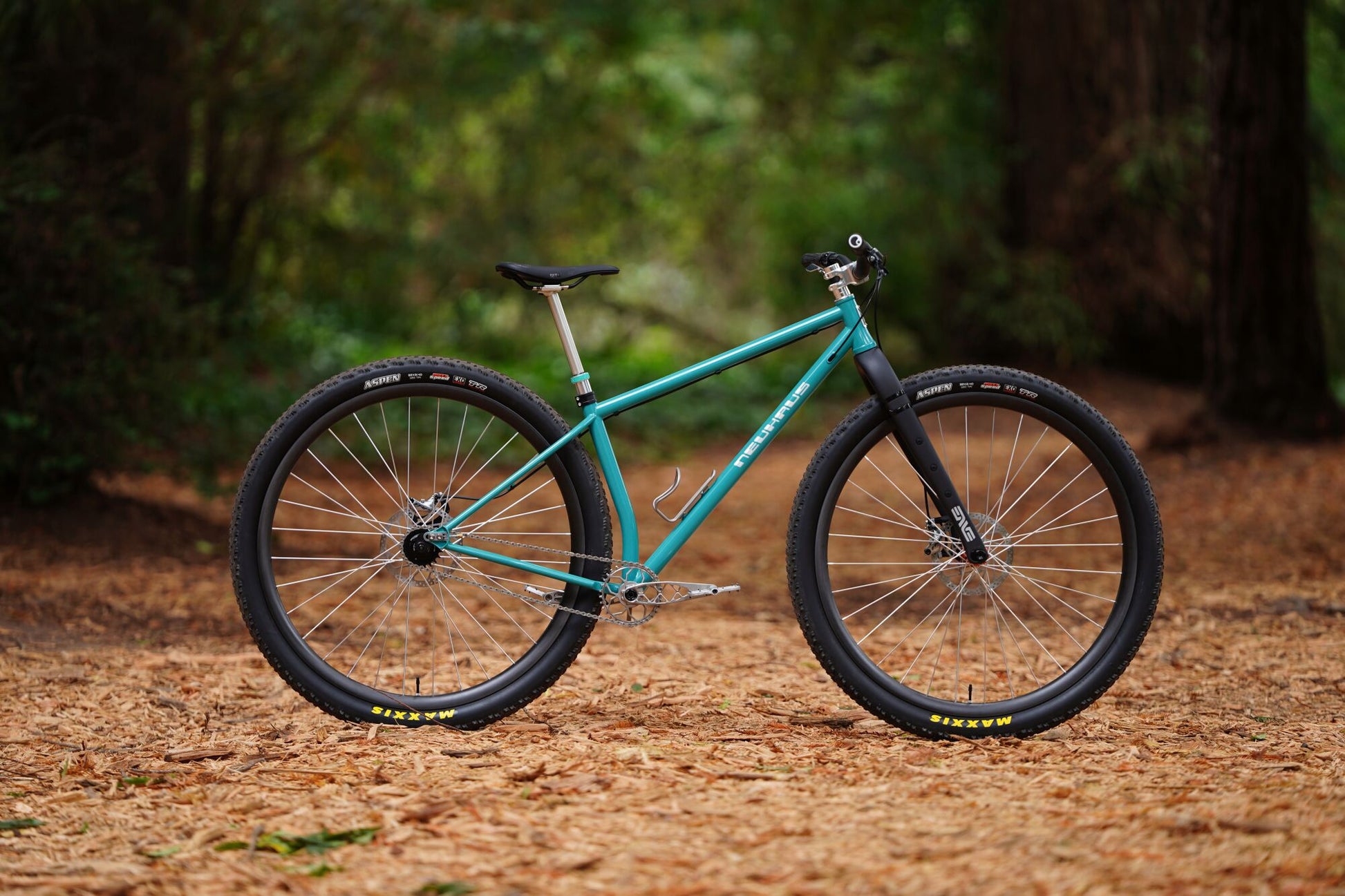

Nova 32 Custom

Nova 32 Custom

Made in USA

Starting at $2,900
$2,900
Sale Sold out

Rigid. Fast. XC fun. Get in the first batch. Delivery ~12 weeks from order date. Nova 32 frameset includes the carbon rigid fork.

Start custom order
View full details

  • Origin

    Made to Order in our Novato, CA workshop

  • Specs

    • Fast is fun. 32in XC bike
    • 3D printed yokes
    • Velospec American steel
    • Designed for a rigid fork.

  • Customizability

    • Color
    • Braze-ons and bosses

  • Sizing

    Custom tube selection. M to XXL+. See size chart

Custom Ordering Process

  • Place your order

    Use our website to configure your custom bike. Your payment reserves a spot on our waitlist.

  • 2. Confirmation

    We'll follow up to confirm any add-ons or custom geometries, then the bike enters our production queue.

  • 3. Build and Delivery

    When your bike is complete, we will collect any remaining balance and ship the frame!
Start custom order

MADE IN CALIFORNIA

Size Chart

We are confident the Nova 32 will fit riders from 5'8 to 6'5.

M
5'8
M+
5'9
ML
5'10
ML+
5'11
L
6'
L+
6'1
XL
6'2
XL+
6'3
XXL
6'4
XXL+
6'5
Neuhaus MTB Geo

Geometry

The Nova 32 features progressive XC geometry designed around a rigid fork. Short as possible chainstays, a tall stack, and designed around a 50-60mm stem. This makes the bike nimble and fast

Scroll sideways to view full table 👉
Size
M
M+
ML
ML+
L
L+
XL
XL+
XXL
XXL+
Saddle Height
690-710
705-725
720-745
735-760
750-775
765-790
785-810
800-830
820-845
840-865
Stack
615
615
621
630
639
648
657
667
685
685
Reach (mm)
440
450
460
467
475
482
490
500
510
520
Seat Tube Length
400
400
420
420
440
440
460
460
490
490
Seat Tube Angle
74.5°
74.5°
74.5°
74.5°
74.5°
74.5°
74.5°
74.5°
74.5°
74.5°
Head Tube Angle
67°
67°
67°
67°
67°
67°
67°
67°
67°
67°
Wheel Size
32
32
32
32
32
32
32
32
32
32
Wheel Base
1150
1160
1174
1184
1196
1206
1219
1229
1251
1261
Chainstay
450
450
450
450
450
450
450
450
450
450
BB Drop
95
95
95
95
95
95
95
95
95
95
Max Dropper (approx)
150
150
170
170
170
200
200
200
200
200

Build kits

Frameset

Frame + NMW NOVA Carbon fork

Rolling Chassis

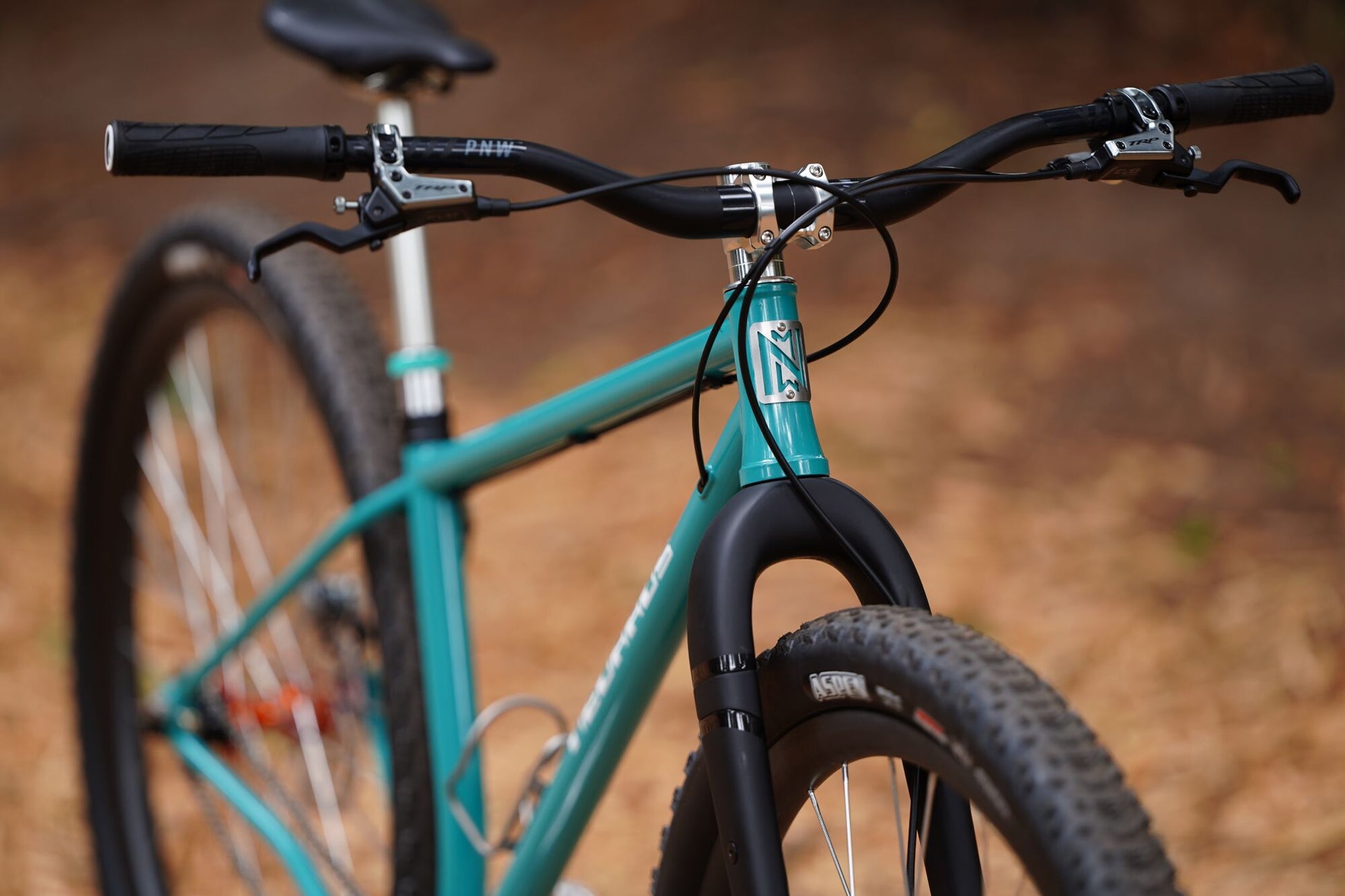

Fork: NMW NOVA Carbon

Wheels: 32in GW 7W23-3022

Tires: Maxxis Aspen 32x2.4

Headset + Seatclamp Included

Shimano XT

Fork: NMW NOVA Carbon

Wheels: 32in GW 7W23-3022

Tires: Maxxis Aspen 32x2.4 (front and rear)

Groupset:  Shimano XT Mechanical

Cockpit: Raceface Turbine

Grips: Raceface

Dropper post: PNW Range

Brakes: BR-M8200

Rotors: 180mm (front), 160mm (rear)

Saddle: WTB Koda steel

Price of the build kit includes installation of all parts. Your bike will be shipped / delivered to you ready to ride with some minor assembly.

Pedals not included. Parts subject to change without notice.

Specs

Travel: Rigid - 490a2c

Wheelsize: 32in

Tire Clearance: 2.1-2.4in

Rear Axle: Boost 148x12. Slidng dropouts

Bottom Bracket: Threaded T47 73mm

Headtube: Tapered IS42/52

Seatpost Diameter: 31.6mm

Brake Mount: PM160

Shift and Brake Cable Routing: External top tube

Dropper Routing: Internal down tube

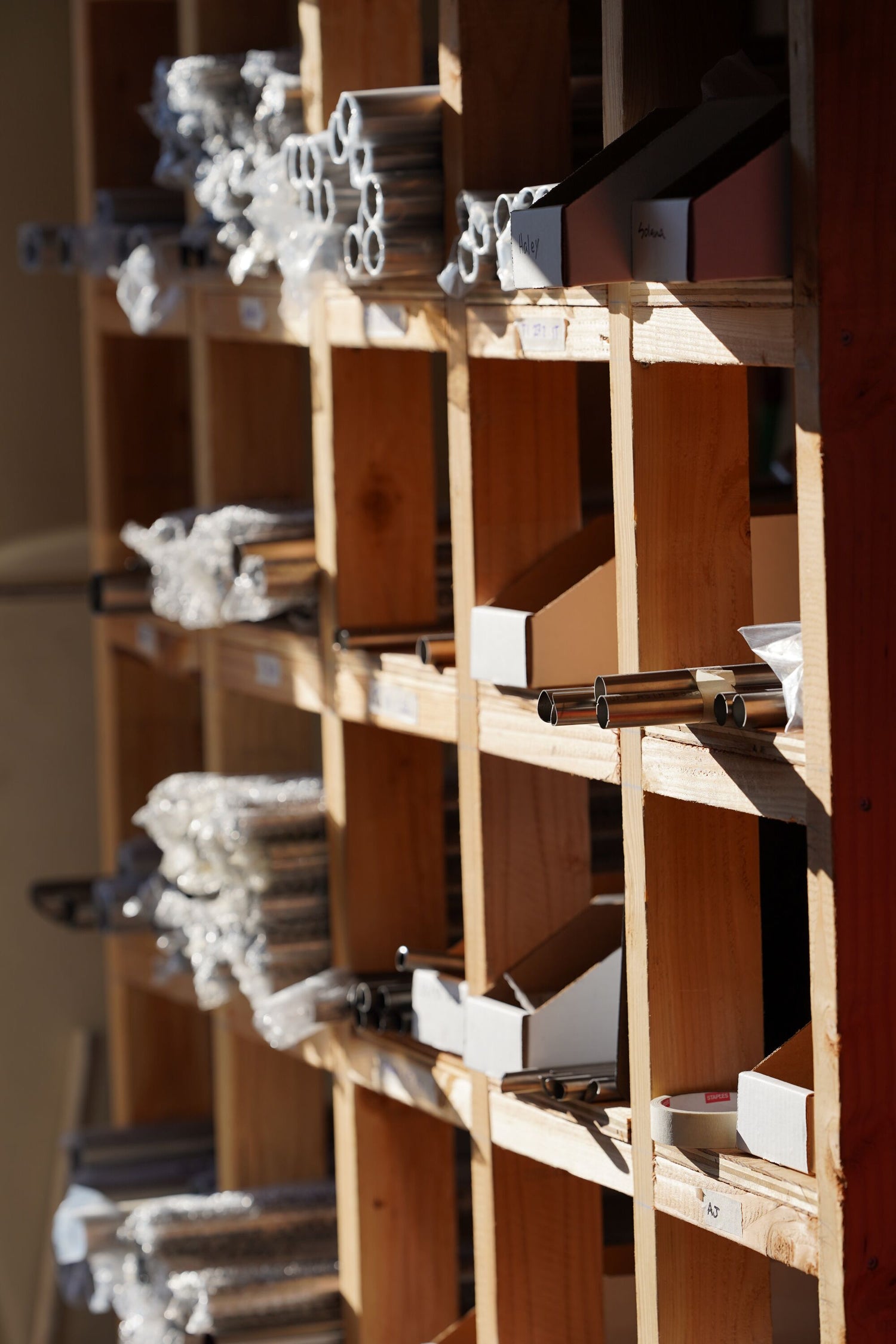

Neuhaus Metalworks fabrication materials

Made for You

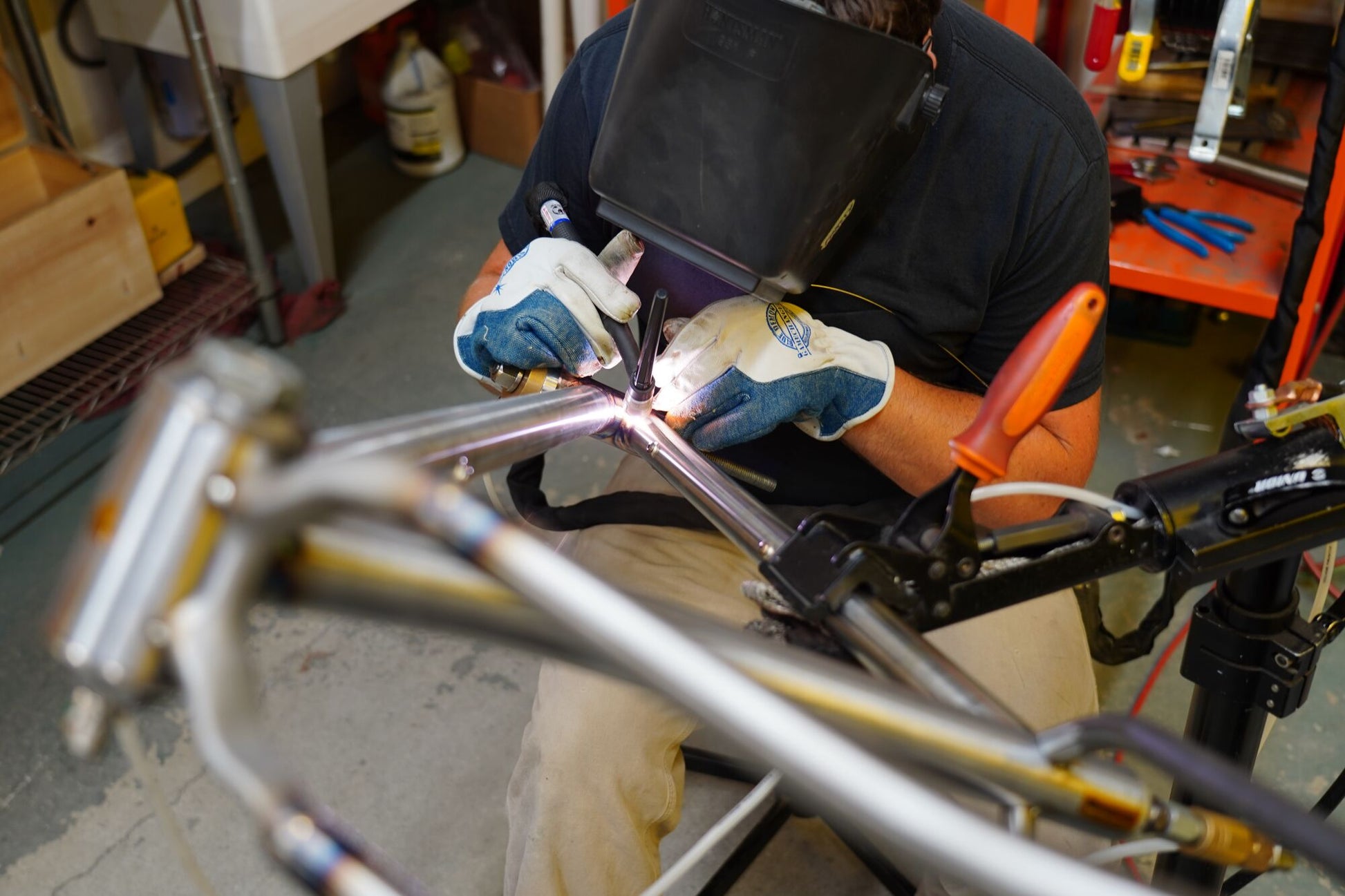

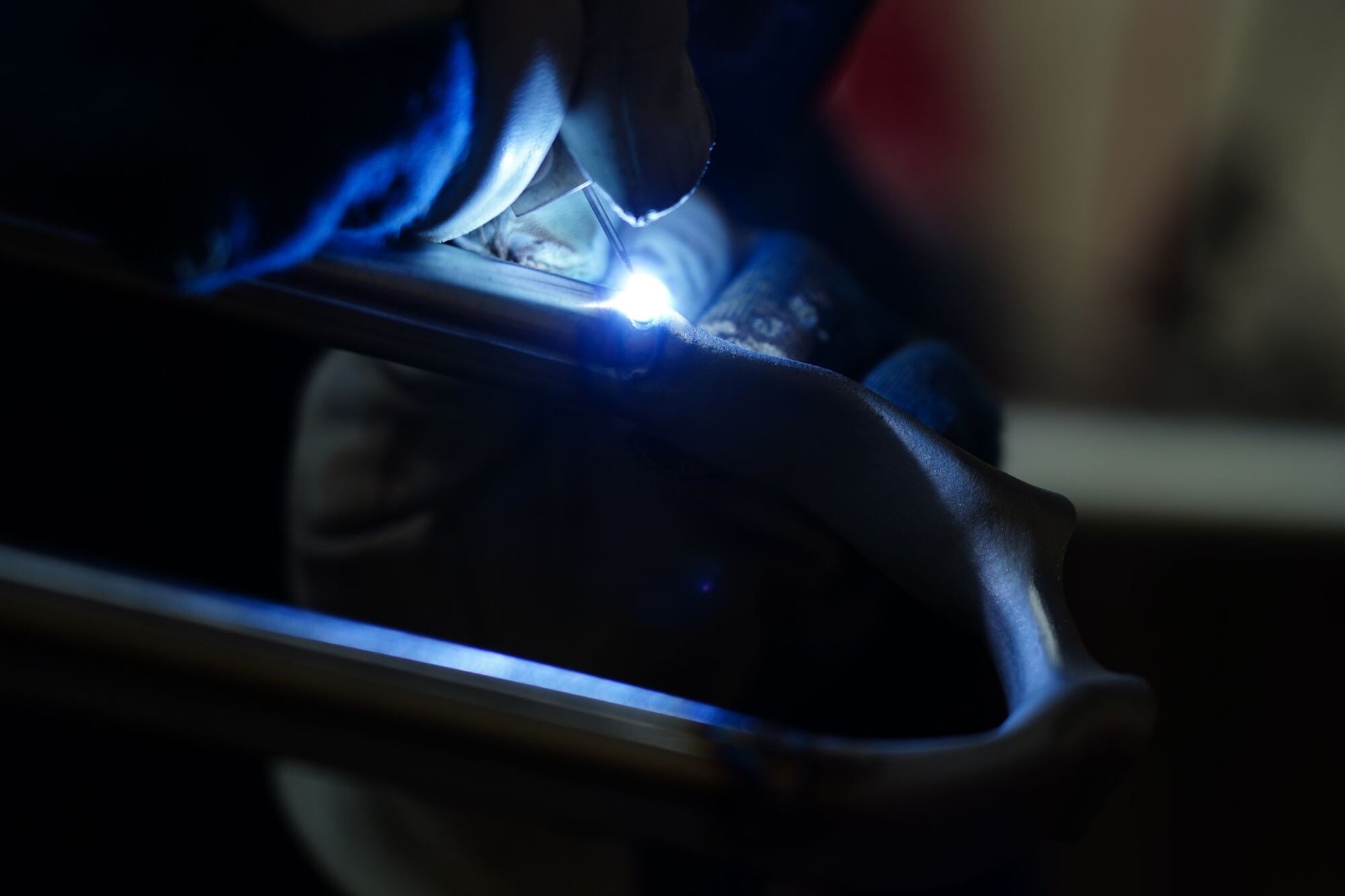

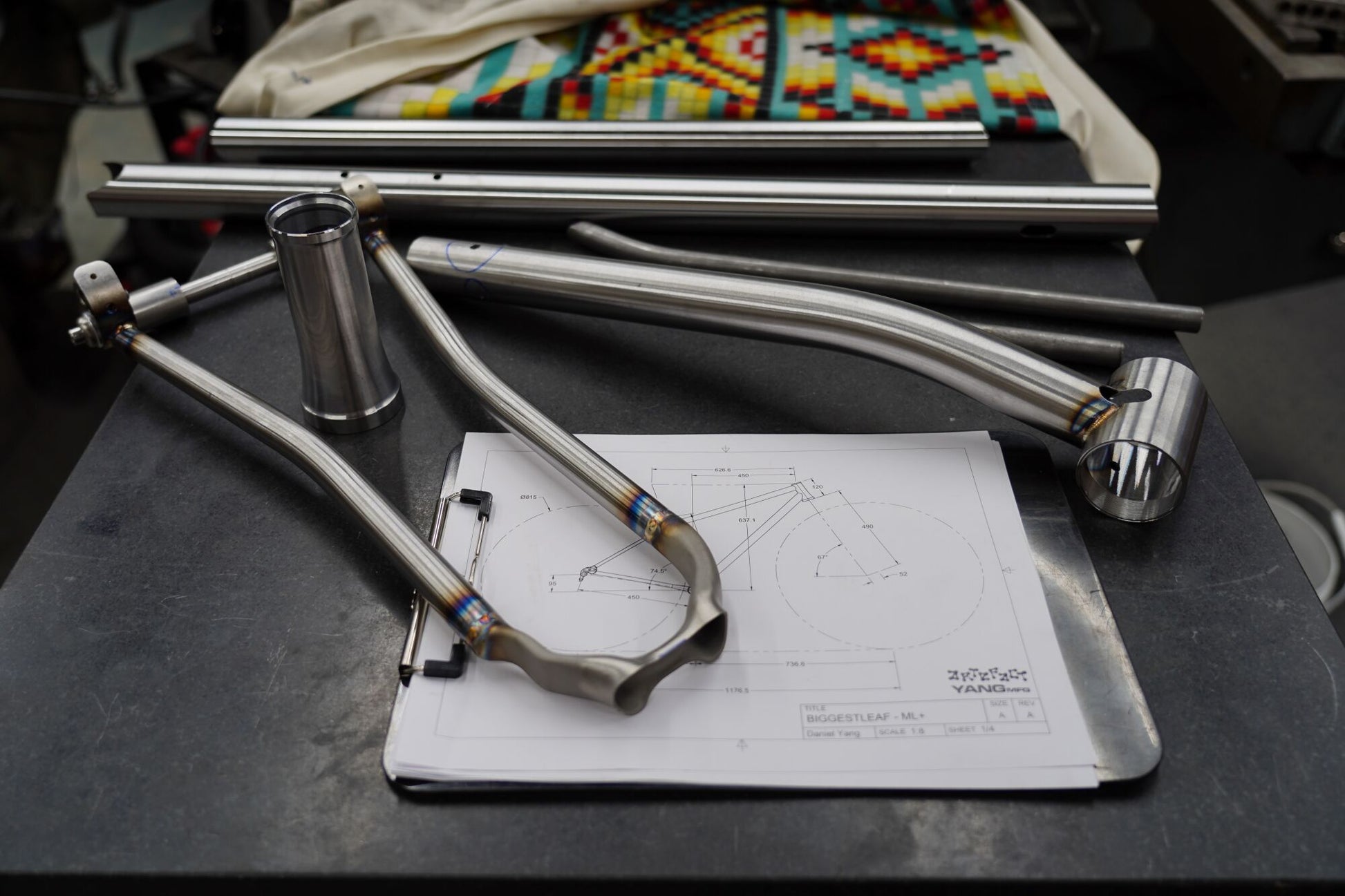

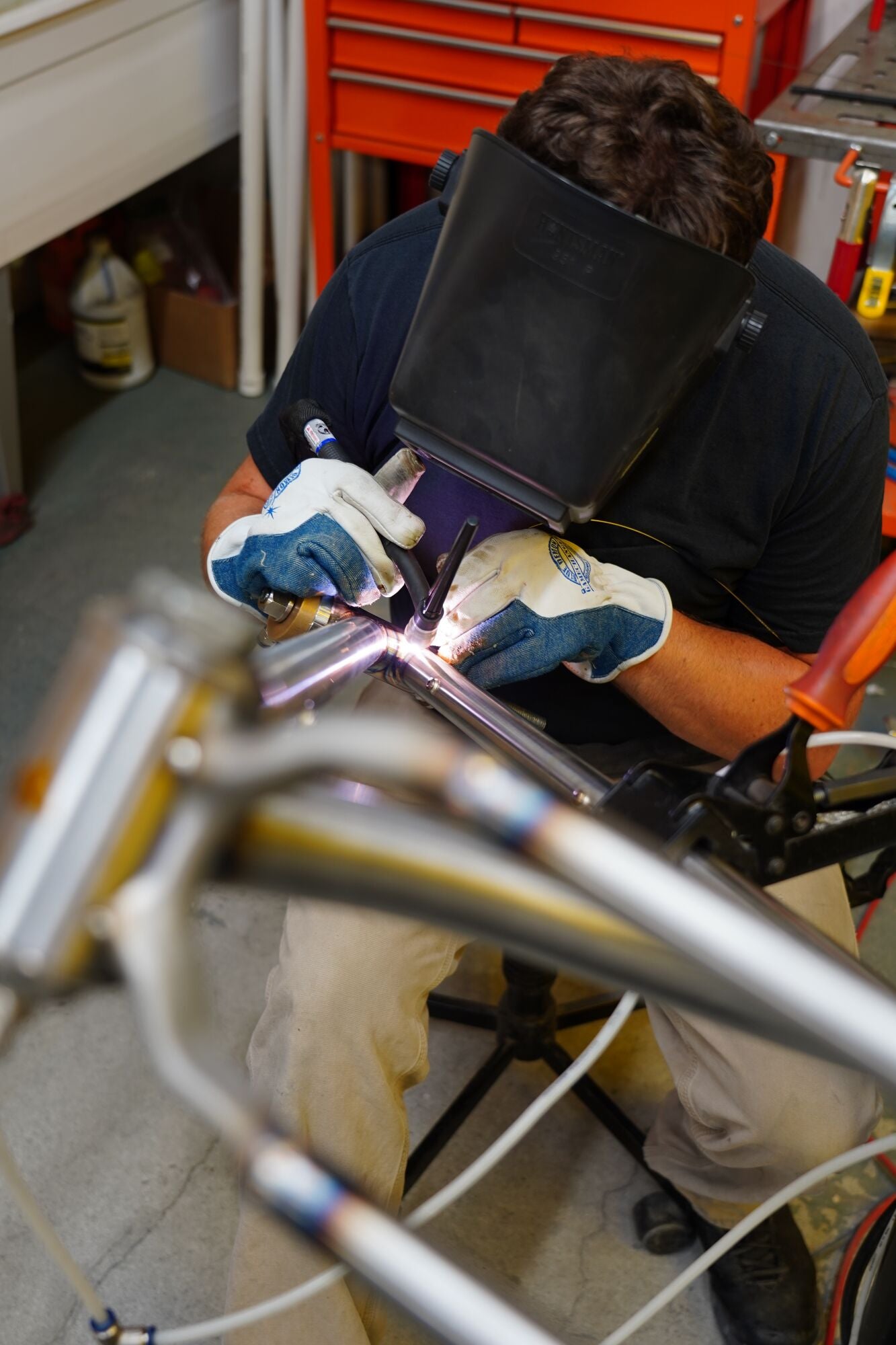

Each custom frame is made for you, using high-quality Velospec steel and a collection of 3D-printed parts. This allows us to create a lightweight, compliant hardtail with the perfect fit.

Thoughtful Features

  • Mix of secure internal and external cable routing — no rattling
  • Threaded bottom bracket for hassle-free maintenance
  • Sliding dropouts for versatility and tuning
  • Room for 32x2.4” tires
