Hummingbird Ti32

Hummingbird Ti32

$2,999

The 32in Hummingbird, in titanium. We designed this hardtail around 100–110mm of travel and 32in wheels, built on the same fit as our Hummingbird. The bigger wheels roll over everything and hold their momentum, which makes it easy to cover a lot of ground. The front triangle has room for water and a frame bag. For riders 5'10" and taller who want to go far. The first batch sold out, and it's back. Why we made it →

Shipping

Frames ship in 2-3 days. Completes take 1 week to assemble and ship.

View full details
Hummingbird Ti32
  • Specs

    • 100-110mm Travel
    • Boost 148x12 Spacing
    • 73mm BSA BB
    • UDH Compatible
    • 3Al-2.5V Titanium
  • House Builds

    Frame or complete. See build kits

  • Sizing

    Three sizes. Best for riders 5'10" and up; fits from 5'9". See size chart

  • Origin

    Designed and prototyped in Novato, built in small batches by ORA in Taiwan. Learn more

Size Chart

For most riders, we recommend choosing the size that corresponds to your height. If you fall in between sizes, we recommend the larger size. Still not sure? Try the size finder.

ML32
5'9–5'11
L32
5'11–6'1
XL32
6'1–6'3
Neuhaus MTB Geo

Geometry

Ti32 keeps the fit of our Hummingbird, adapted for 32in wheels: 445mm chainstays, a 66.5° head angle and a tall stack. Geometry is shown unsagged.

Scroll →
Size
ML32
L32
XL32
Stack
658
658
695
Reach
450
470
490
Effective TT
632
652
686
Seat Tube Length
440
460
480
Head Tube Length
90
90
130
Seat Tube Angle
74.5°
74.5°
74.5°
Head Tube Angle
66.5°
66.5°
66.5°
Chainstay
445
445
445
BB Drop
88
88
88
Wheelbase
1182
1202
1238
Fork Axle-to-Crown
550
550
550
Fork Offset
44
44
44
Max Dropper Insertion
260
280
300

House Build Kits

Frameset

Frame + X-Fusion Rezza RCP 32 fork + headset

Rolling Chassis

Frame + X-Fusion Rezza RCP 32 fork + headset + GW Alloy 32in wheels + Maxxis Aspen 32x2.4 tires

Shimano XT

Fork: X-Fusion Rezza RCP 32, 100mm travel

Wheels: GW Alloy 32in

Tires: Maxxis Aspen 32x2.4 (front and rear)

Groupset: Shimano XT Mechanical

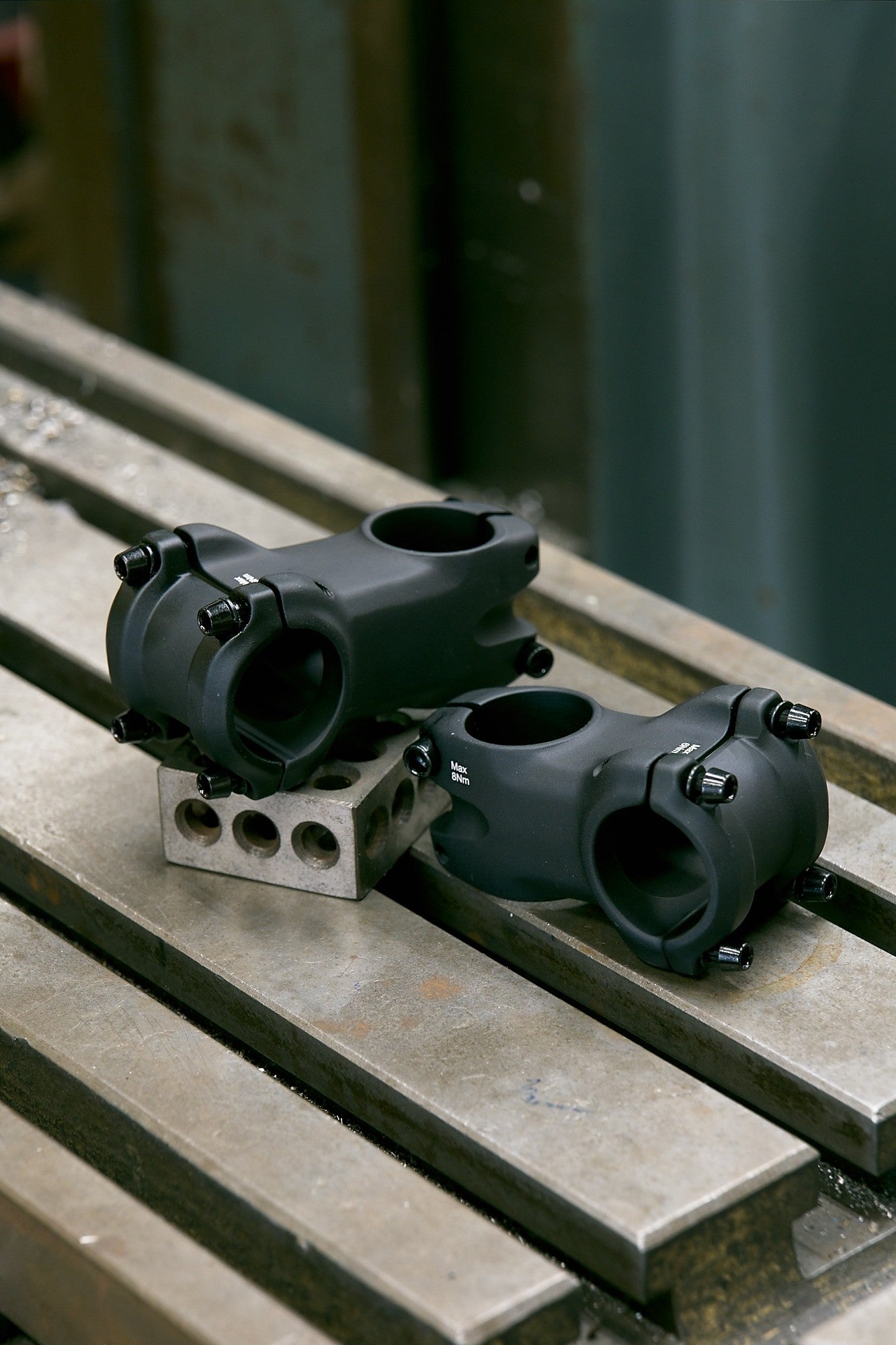

Cockpit: PNW/NMW

Grips: PNW

Dropper post: PNW Range

Brakes: TRP EVO

Rotors: 180mm (front and rear)

Saddle: NMW Trail Saddle

Price of the build kit includes installation of all parts. Your bike will be shipped / delivered to you ready to ride with some minor assembly.

Pedals not included. Parts subject to change without notice.

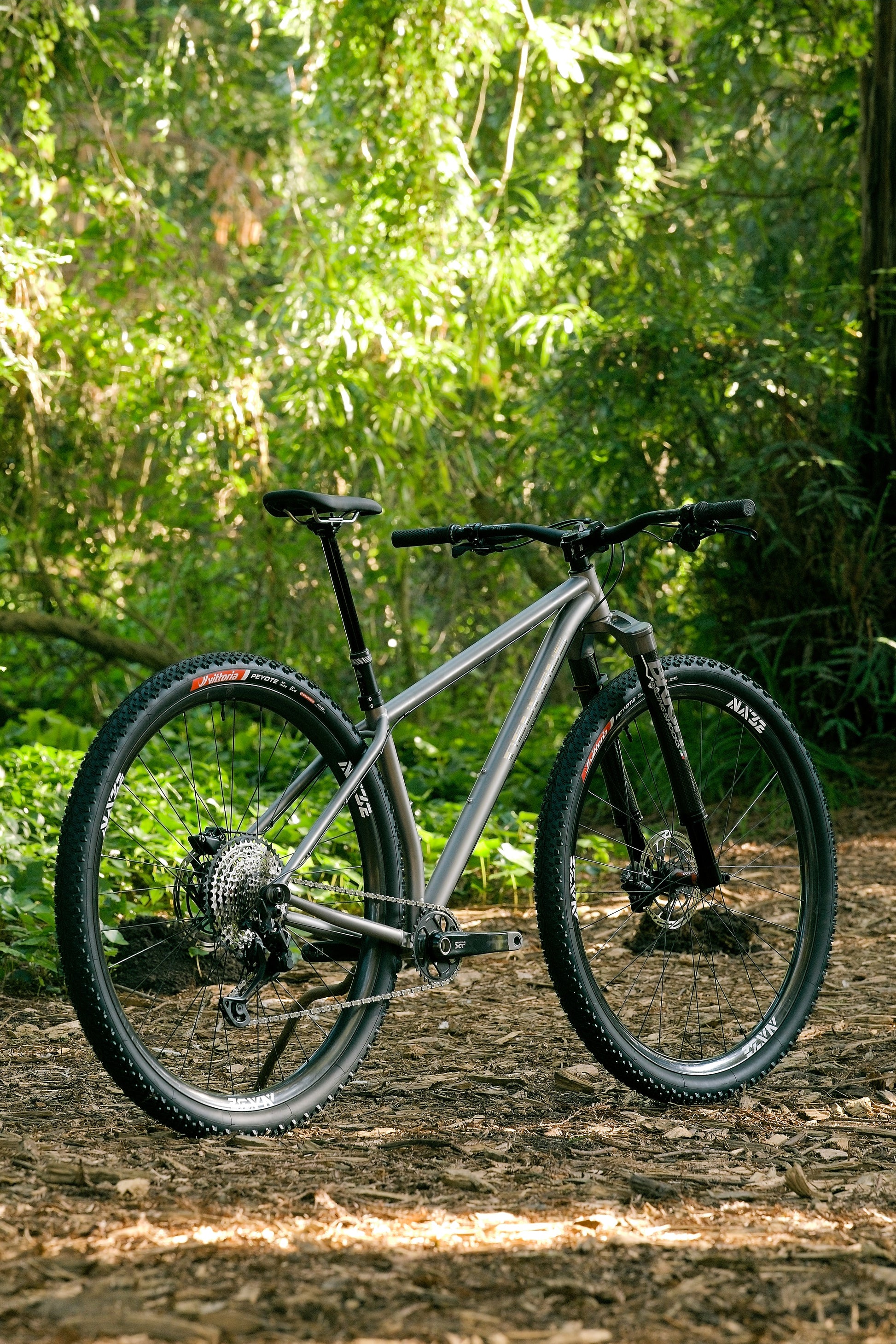

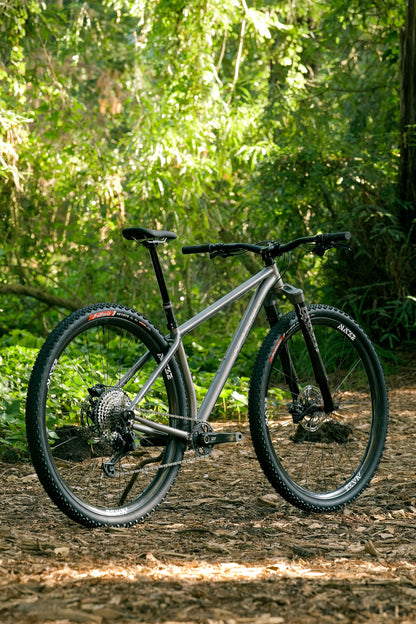

Hummingbird Ti32 titanium hardtail, drive-side profile

Specs

Travel: 100-110mm, 550mm axle-to-crown, 44mm offset

Bottles: Two in the frame, one under the down tube

Wheel size: 32in

Tire clearance: 32x2.4"

Rear axle: Boost 148x12

Front axle: Boost 110x15

Bottom bracket: Threaded BSA 73mm

Chainline: 52-55mm

Max chainring: 32t

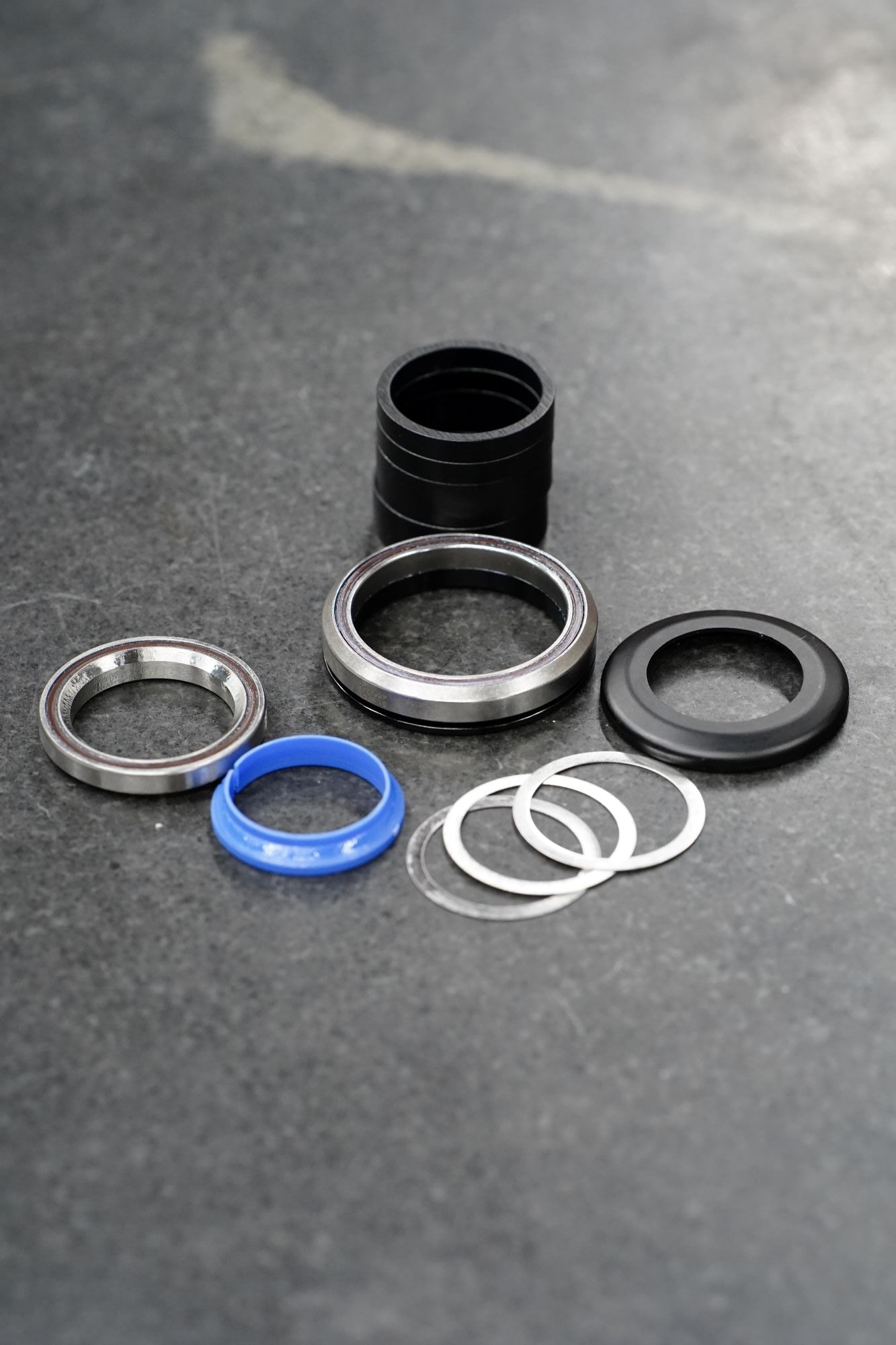

Headtube: Tapered IS42/52

Seatpost diameter: 31.6mm

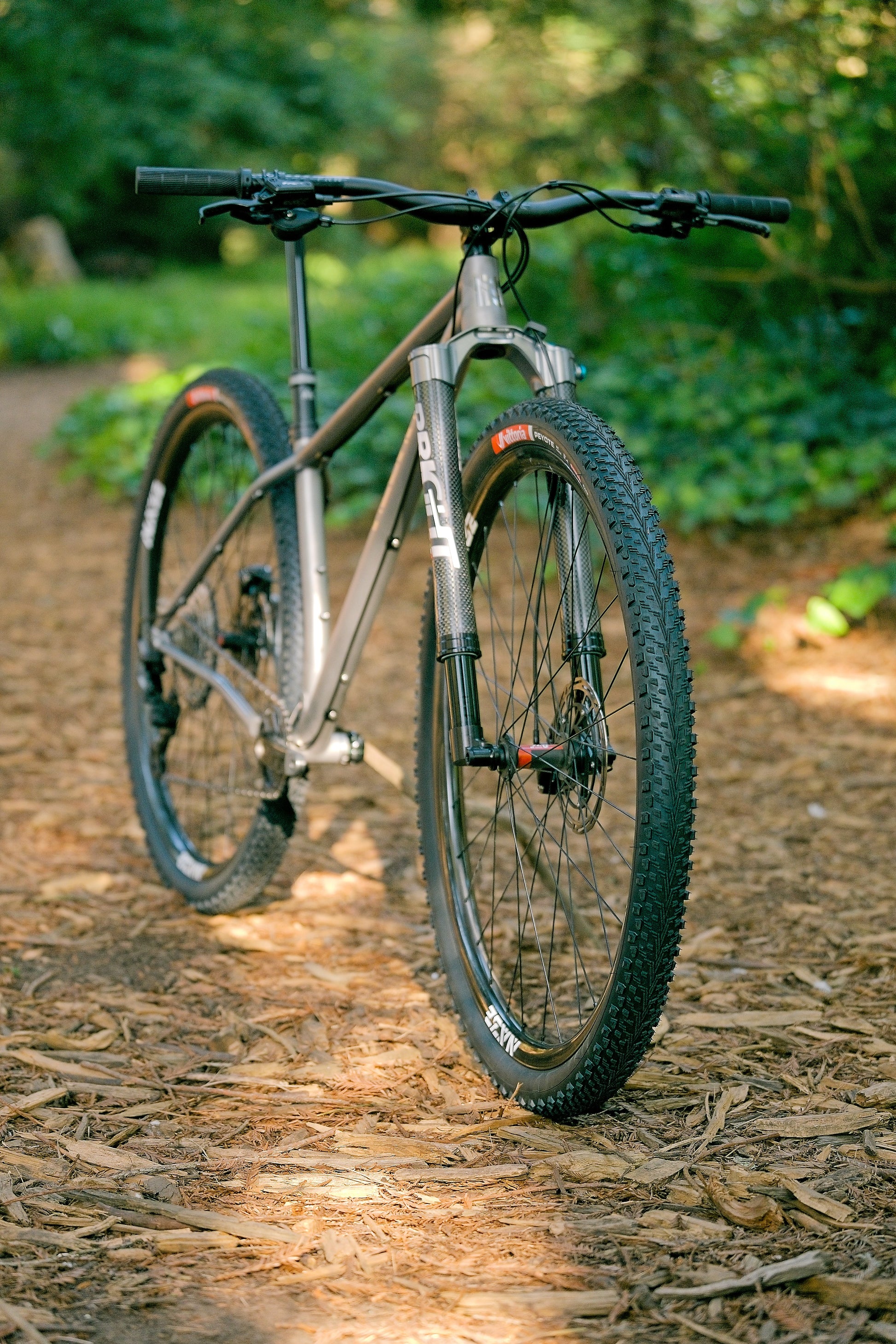

Hummingbird Ti32 titanium hardtail, three-quarter view

Ride Quality

Lighter and a bit stiffer than steel, which makes for a more spirited ride: it encourages you to push harder and climb faster. We build ours on the utilitarian side, with ORA's triple-butted tubes, a 1.4mm butt at the head tube, and a raw finish with no paint to chip.

  • 3Al-2.5V titanium, triple butted and heat treated
  • 1.4mm head tube butts, no gusset needed
  • Raw, glass-blasted finish with brushed logos

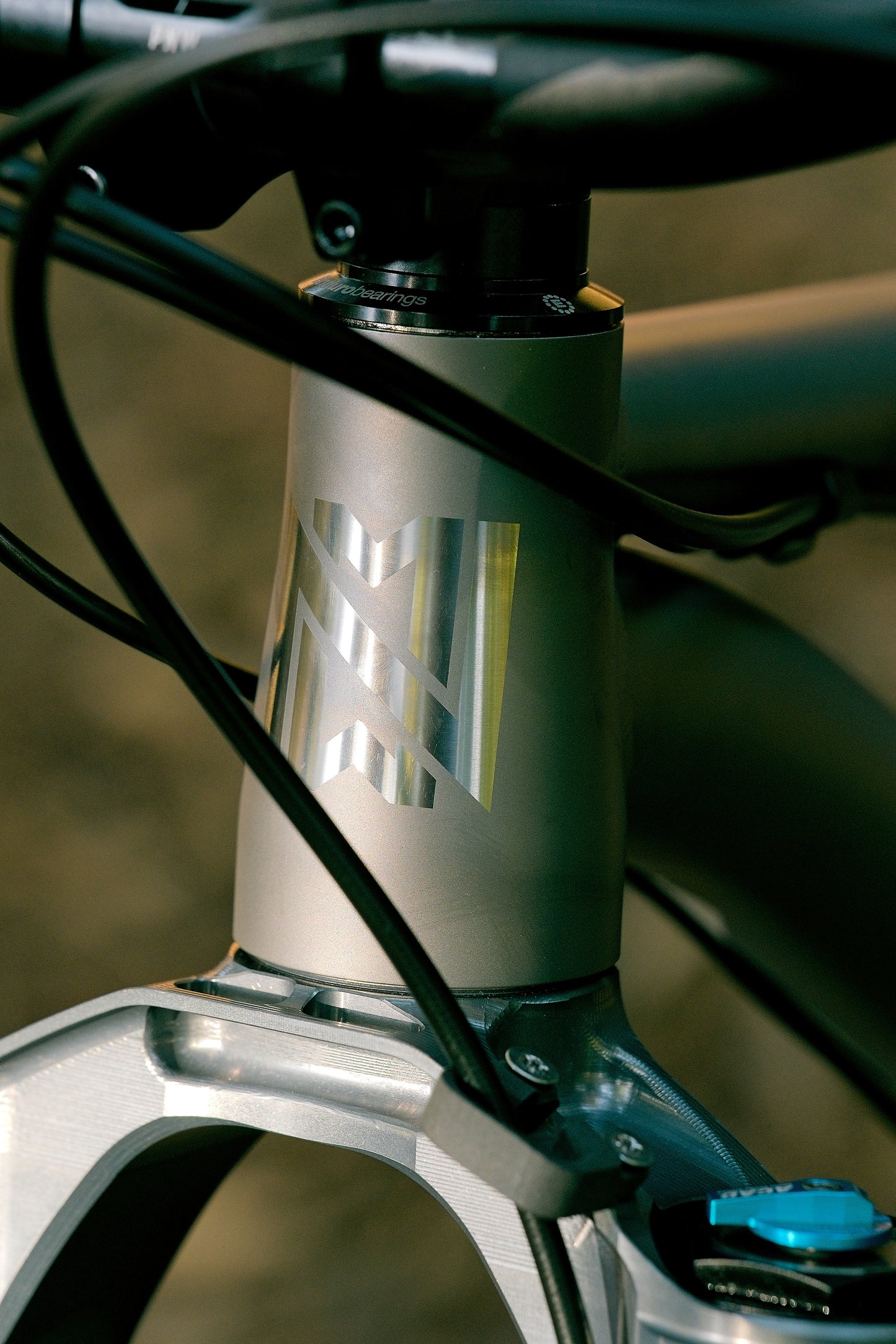

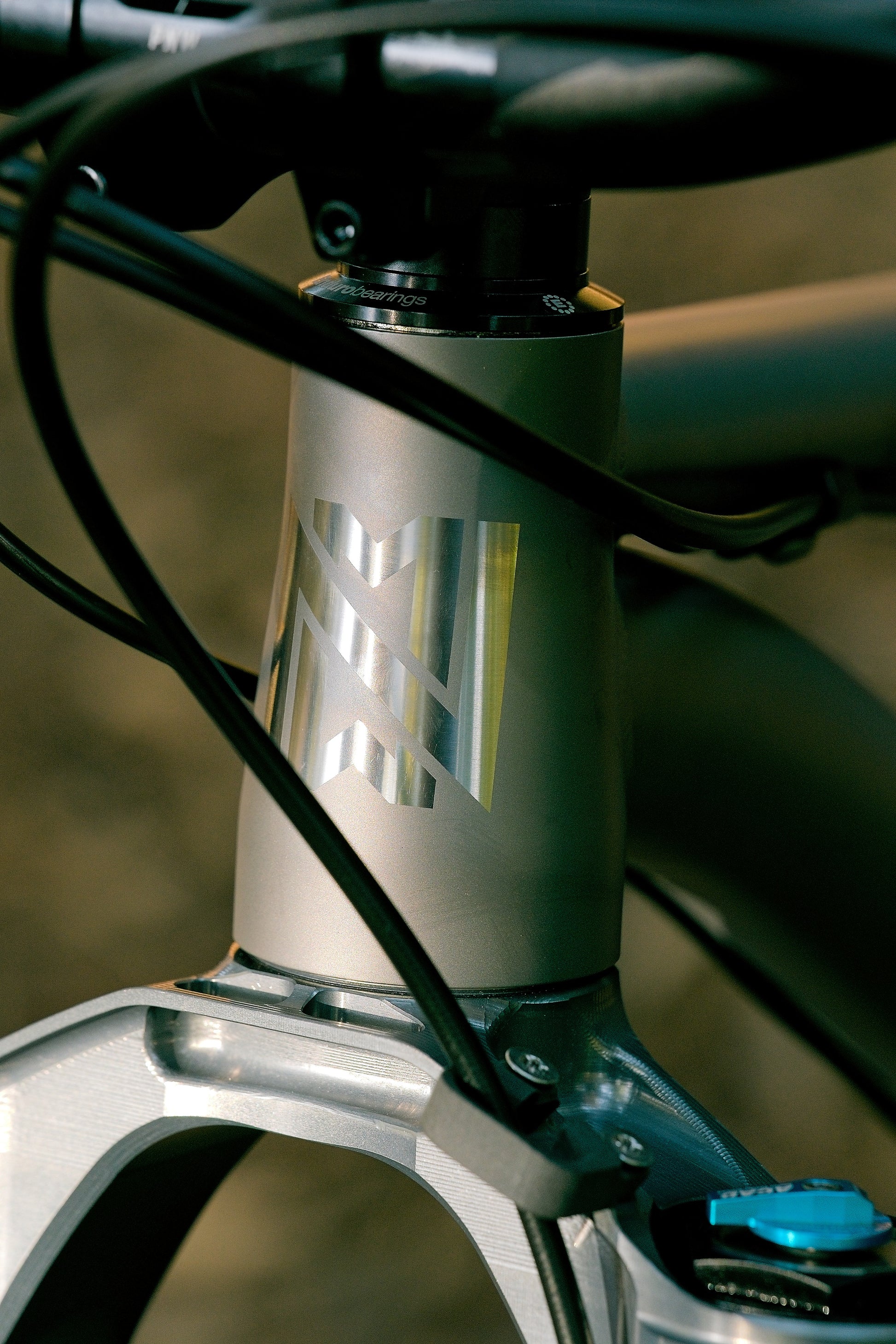

Hummingbird Ti32 head tube with brushed Neuhaus badge and cable routing

Thoughtful Features

  • Big front triangle: two bottles in every size, one under the down tube, and room for a frame bag
  • 445mm chainstays, the shortest we could make them
  • Room for 32x2.4" tires
  • All external cable routing, easy to build up and keep running
  • Cable guides rotated so the cables wrap cleanly around the head tube
  • UDH dropout, ready for SRAM Transmission
  • Built on long-lived standards: Boost, UDH, threaded BSA, IS42/52, 52–55mm chainline

Core Collection

Core takes what we learn building custom bikes in Novato and puts it into production. We work closely with ORA, one of the best titanium frame builders there is, to carry over the same geometry and features we prototype in our shop, in a bike that's a little more accessible and ready to ride now. Titanium frames come in batches of 20, and we build each complete bike one at a time in our shop.
